Dzus D8 Spare Part 14 mm D Ring Bolt Silver Yamaha 8HG-28386-00-00
Dzus D8 14 mm D Ring Bolt Spare Part Silver Yamaha Equivalent
Dzus D8 Spare Part 14 mm D Ring Bolt Silver Yamaha 8HG-28386-00-00
Dzus D8 14 mm D Ring Bolt Spare Part Silver Yamaha Equivalent

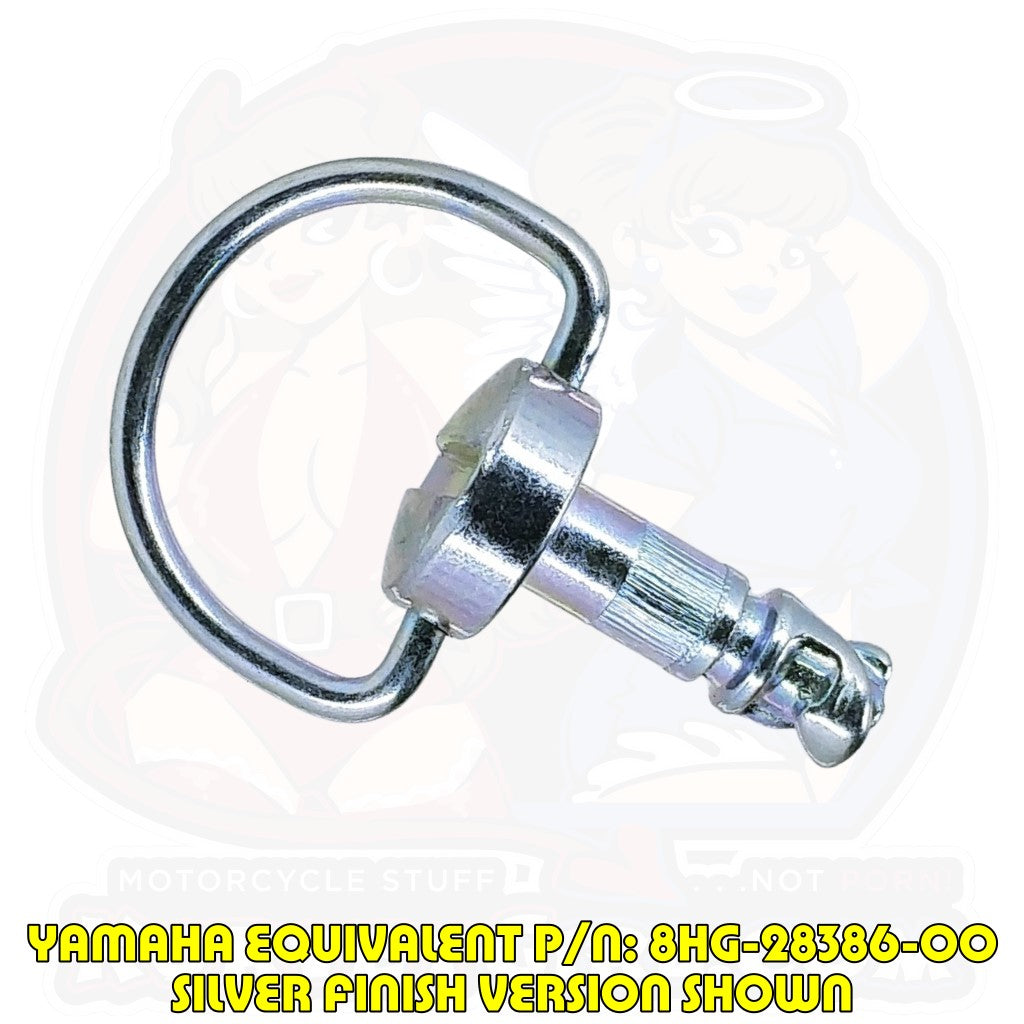

Yamaha Replacement Bolt: 8HG-28386-00, DZUS (D8), Silver, WL=14mm

$5.00 USD
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Replacement bolt for Yamaha Motorcycle Dzus bolts : P/N 8HG-28386-00 / 8HG-28386-00-00
  • Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
  • 14mm Dzus bolt is a DIRECT mechanical replacement for Yamaha Part Number 8HG-28386-00 & 8HG-28386-00-00.
  • Note: Yamaha Part OEM Finish is a CHROME finish, Replacement part is a Zinc Plate with Chromate finish.
Kit Includes:
1 - 6mm D-Ring Panex D8 Fasteners
  • Working Length: 14mm
  • Coating: Zinc Plate with Chromate
  • Note: Chromate is not a non-scratch finish
2 - Retaining Washers.
  • Material: High density polyethylene
NEW D8 Style Dzus Panex Bolts:
  • New Generation Dzus Panex Bolt that is lighter than original D3 Style Dzus Panex Bolt
  • 100% Compatible with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
Dzus Bolts Specs & Drawing
Dzus Panex D8 Bolt Specs - Drawing
Additional Dzus Bolt Specs / Info

  • (L) Working Length: 14mm
  • Shaft Length : 17mm
  • Grip Range: 5.5mm to 7.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch
Yamaha Part and Application Info: [NOTE: Yamaha Part OEM Finish is a CHROME finish]
Equivalent Yamaha P/N's:
  • 8HG-28386-00
  • 8HG-28386-00-00
Yamaha Fitment List (Partial List):
Yamaha: ATV
  • (2017) YFZ450
  • (2015-2024) YFZ450R
  • (2015-2024) YFZ450R SE
  • (2014-2021) YFZ450R SPECIAL EDITION

Yamaha: Snowmobile
  • (2017) APEX
  • (2017) APEX LE
  • (2017) APEX XTX
  • (2017) APEX XTX 1.75 LE
  • (2014-2017) PHAZER MTX
  • (2014-2017) PHAZER RTX
  • (2014-2018) PHAZER XTX
  • (2017) RS VECTOR
  • (2017) RS VECTOR XTX
  • (2017) RS VENTURE TF
  • (2021) RS VENTURE TF
  • (2018) RS VENTURE TF BAT
  • (2017) RS VENTURE TF LE
  • (2017-2018) VENTURE MP
  • (2014-2016) VENTURE MULTI PURPOSE
  • (2015) VENTURE MULTI PURPOSE
  • (2016) VENTURE MULTI PURPOSE

Yamaha: Side By Side
  • (2016) YXZ1000 EPS
  • (2016) YXZ1000 EPS SPECIAL EDITION
  • (2017-2018) YXZ1000R EPS
  • (2018) YXZ1000R EPS SE
  • (2017) YXZ1000R EPS SPECIAL EDITION
  • (2017) YXZ1000R EPS SS
  • (2017-2018) YXZ1000R EPS SS SE
  • (2018) YXZ100R EPS SS
Compatible Dzus D8 Hardware Links
Description & Link to Product
Dzus Panex D8 Clip on Retainer
DZUS PANEX D8 Clip on Retainer
Link: [ CLICK HERE ]
Dzus Panex D8 Rivet On Retainer
DZUS PANEX D8 Rivet on Retainer
Link: [ CLICK HERE ]
Dzus Panex D8 Washer - Black
DZUS PANEX D8 Retaining Washer
Link: [ CLICK HERE ]
FITMENT
Yamaha Part and Application Info: [NOTE: Yamaha Part OEM Finish is a CHROME finish]
Equivalent Yamaha P/N's:
  • 8HG-28386-00
  • 8HG-28386-00-00
Yamaha Fitment List (Partial List):
Yamaha: ATV
  • (2017) YFZ450
  • (2015-2024) YFZ450R
  • (2015-2024) YFZ450R SE
  • (2014-2021) YFZ450R SPECIAL EDITION

Yamaha: Snowmobile
  • (2017) APEX
  • (2017) APEX LE
  • (2017) APEX XTX
  • (2017) APEX XTX 1.75 LE
  • (2014-2017) PHAZER MTX
  • (2014-2017) PHAZER RTX
  • (2014-2018) PHAZER XTX
  • (2017) RS VECTOR
  • (2017) RS VECTOR XTX
  • (2017) RS VENTURE TF
  • (2021) RS VENTURE TF
  • (2018) RS VENTURE TF BAT
  • (2017) RS VENTURE TF LE
  • (2017-2018) VENTURE MP
  • (2014-2016) VENTURE MULTI PURPOSE
  • (2015) VENTURE MULTI PURPOSE
  • (2016) VENTURE MULTI PURPOSE

Yamaha: Side By Side
  • (2016) YXZ1000 EPS
  • (2016) YXZ1000 EPS SPECIAL EDITION
  • (2017-2018) YXZ1000R EPS
  • (2018) YXZ1000R EPS SE
  • (2017) YXZ1000R EPS SPECIAL EDITION
  • (2017) YXZ1000R EPS SS
  • (2017-2018) YXZ1000R EPS SS SE
  • (2018) YXZ100R EPS SS
SHIPPING & RETURNS
PART NUMBER(S)

Equivalent Yamaha P/N's:

  • 8HG-28386-00
  • 8HG-28386-00-00
