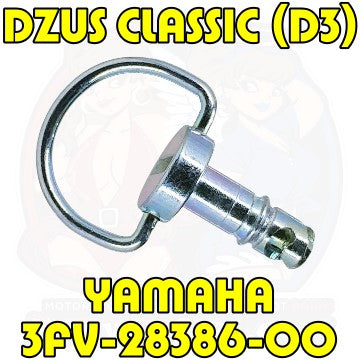

Dzus Classic D3 D Ring 14 mm Silver Yamaha 3FV-28386-00-00
Dzus D3 14 mm D Ring Bolt Star Washer Silver Yamaha 1SL-28386-00-00 & 5TJ-21757-00-00
Dzus Classic D3 D Ring 14 mm Silver Yamaha 3FV-28386-00-00
Dzus D3 14 mm D Ring Bolt Star Washer Silver Yamaha 1SL-28386-00-00 & 5TJ-21757-00-00

Yamaha Replacement Bolt: 3FV-28386-00-00, DZUS CLASSIC (D3), Silver, WL=14mm

$9.00 USD
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Replacement bolt for Yamaha Motorcycle Dzus bolts : P/N 3FV-28386-00-00
  • Single replacement bolt and washer Kit for attaching motorcycle bodywork together.
  • 14mm Dzus bolt is a DIRECT mechanical replacement for Yamaha Part Number 3FV-28386-00-00.
  • Note: Yamaha Part OEM Finish is a CHROME finish, Replacement part is a Zinc Plate with Chromate finish.
  • Note: No attachment clip is included with these parts.
  • We strongly recommend you purchase a new replacement clip for best fitting.
Kit Includes:
1 - 6mm D-Ring Panex Fasteners Working Length: 14mm
Coating: Zinc Plate with Chromate
2 - Retaining Washers. Material: High density polyethylene
Dzus Bolts Specs & Drawing
Additional Dzus Bolt Specs / Info

(L) Working Length: 14mm
Shaft Length : 17mm

Grip Range: 5.5mm to 7.4mm
Maximum Grip with out washers
Minimum Grip using 2 washers

Minimum bodywork Hole size: 7.2mm
English: 9/32nd Inch
Yamaha Part and Application Info: [NOTE: Yamaha Part OEM Finish is a CHROME finish]
Equivalent Yamaha P/N's:

Main P/N: 3FV-28386-00-00 		3FV-28386-00-00
3FV 28386 00 00
3FV283860000
3FV28 3860000
3FV283 860000
3F V2838 60000
3FV2 8386 0000
3FV 283 860 000
3F V2 83 86 00 00
Yamaha Fitment List (Partial List):
Year Model
2015 - 2016 YZ250F
2016 - 2017 YZ450F
2010 - 2012 YFZ450X
2009 - 2014 YFZ450R SE
2008 - 2013 FX NYTROL / MTX / RTX / SE / XTX
2008 - 2013 RS VECTOR / GT / LTX
2007 - 2013 VENTURE LITE / RX / RS / GT / TF
2007 - 2013 PHAZER / FX / GT / MTX / RTX / XTX
2006 - 2007 ATTAK / ATTAK GT
2006 - 2012 APEX ER / GT / RTX / RTX ER / MOUNTAIN / LTX
2000 - 2007 TTR125 L / LE / E
1999 YZFR7L / YZFR7 COWLING 1
Compatible Yamaha Dzus Hardware Links
IMAGE Description & Link to Product
Dzus Panex D8 Clip on Retainer Replacement Spring Plate: Yamaha P/N: 4XV-2177L-01-00
Link: [ CLICK HERE ]
Dzus Panex D8 Rivet On Retainer Replacement Spring Plate: Yamaha P/N: 2TK-2177L-00-00
Link: [ CLICK HERE ]
Dzus Panex D3 Washer - White DZUS PANEX D3 Retaining Washer
Link: [ CLICK HERE ]
