4pc: OEM Plastic Bodywork, DZUS CLASSIC (D3), D-Ring, Clip-On, Silver, WL=14mm

$26.67 USD
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete 4pc Dzus® Classic Kit for attaching motorcycle bodywork together.
14mm Dzus® Classic bolts are the "Rule of Thumb" length for plastic bodywork.  14mm Dzus® Classic bolts grip up to 7.4mm total bodywork thickness

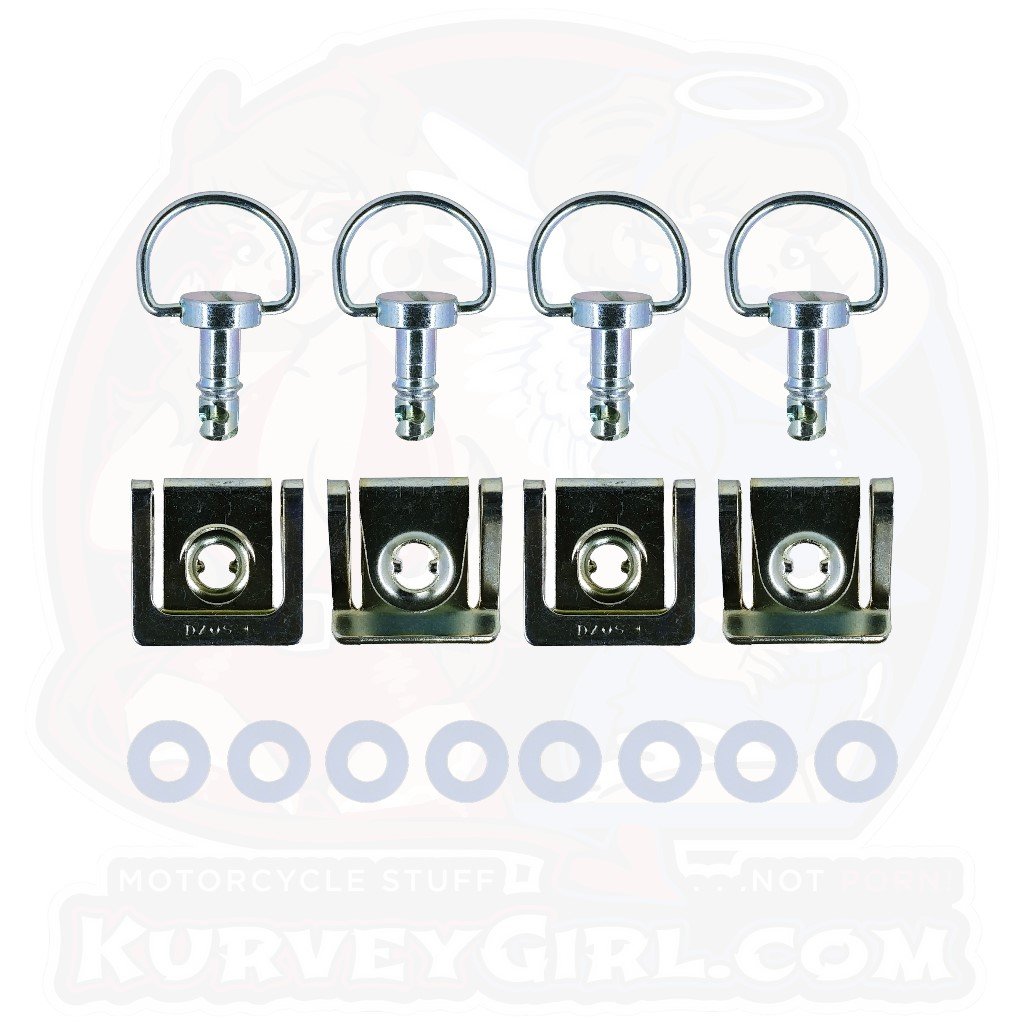

Kit Includes:
4 - 6mm D-Ring Panex D3 Fasteners Length: 14mm
Coating: Zinc Plate with Chromate
4 - 6mm Clip on Panex D3 Retainers Coating: Zinc Plate with Chromate
8 - Retaining Washers. Material: High density polyethylene
Color: White
Dzus® Classic Style Panex Bolts (D3):
  • 1st Generation Dzus® Panex Bolt that is thicker and heavier than current D8 Style Dzus® Panex Bolt
  • 100% Compatible with newer D8 Mounting Hardware.
  • Machined engagement head.
  • Larger White retaining washers.
    • Smaller Black D8 Style washers are not compatible with Dzus® Classic (D3) Bolts
Combine 4pcs and 6pcs kits to create custom kit sizes...
4pcs kits 6pcs kits Total Number of Dzus®
1 - 4 pcs kit 1 - 6 pcs kit 10 Dzus® Pcs
2 - 4 pcs kit 1 - 6 pcs kit 14 Dzus® Pcs
1 - 4 pcs kit 2 - 6 pcs kit 16 Dzus® Pcs
Dzus® Bolts Specs & Drawing
Additional Dzus® Bolt Specs / Info

  • (L) Working Length: 14mm
  • Shaft Length : 17mm
  • Grip Range: 5.5mm to 7.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 7.2mm
    • English: 9/32nd Inch
Dzus® Clip Specs & Drawing
Dzus® Clip Specs / Info

  • Max hole from edge: 12mm
  • Minimum flat space for clip: 25mm
  • Minimum clearance behind bodywork:12mm
  • Grip Range: 5.5mm to 7.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
Dzus® is a Registered Trademark of Southco Inc.
