Dzus D8 12 mm D Ring Bolt Clip On Black 4 Pack
Dzus D8 12 mm D Ring Clip On 4 Pack Black
Dzus D8 12 mm D Ring Bolt Clip On Black 4 Pack
Dzus D8 12 mm D Ring Clip On 4 Pack Black

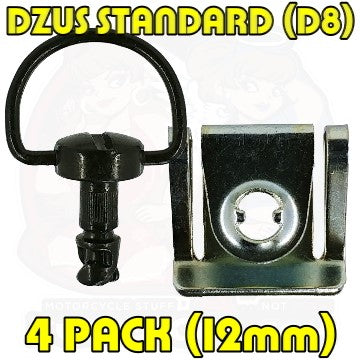

4pc: Fiberglass Bodywork, DZUS (D8), D-Ring, Clip-On, Black, WL=12mm

$17.33 USD
/
Shipping calculated at checkout.
  • In stock
  • Inventory on the way
DESCRIPTION FITMENT SHIPPING & RETURNS PART NUMBER(S) ADDITIONAL INFO
DESCRIPTION
Complete 4pc Kit for attaching fiberglass motorcycle bodywork together.  12mm Dzus® bolts are the "Rule of Thumb" length for fiberglass bodywork.  12mm Dzus® bolts grip up to 5.4mm total bodywork thickness

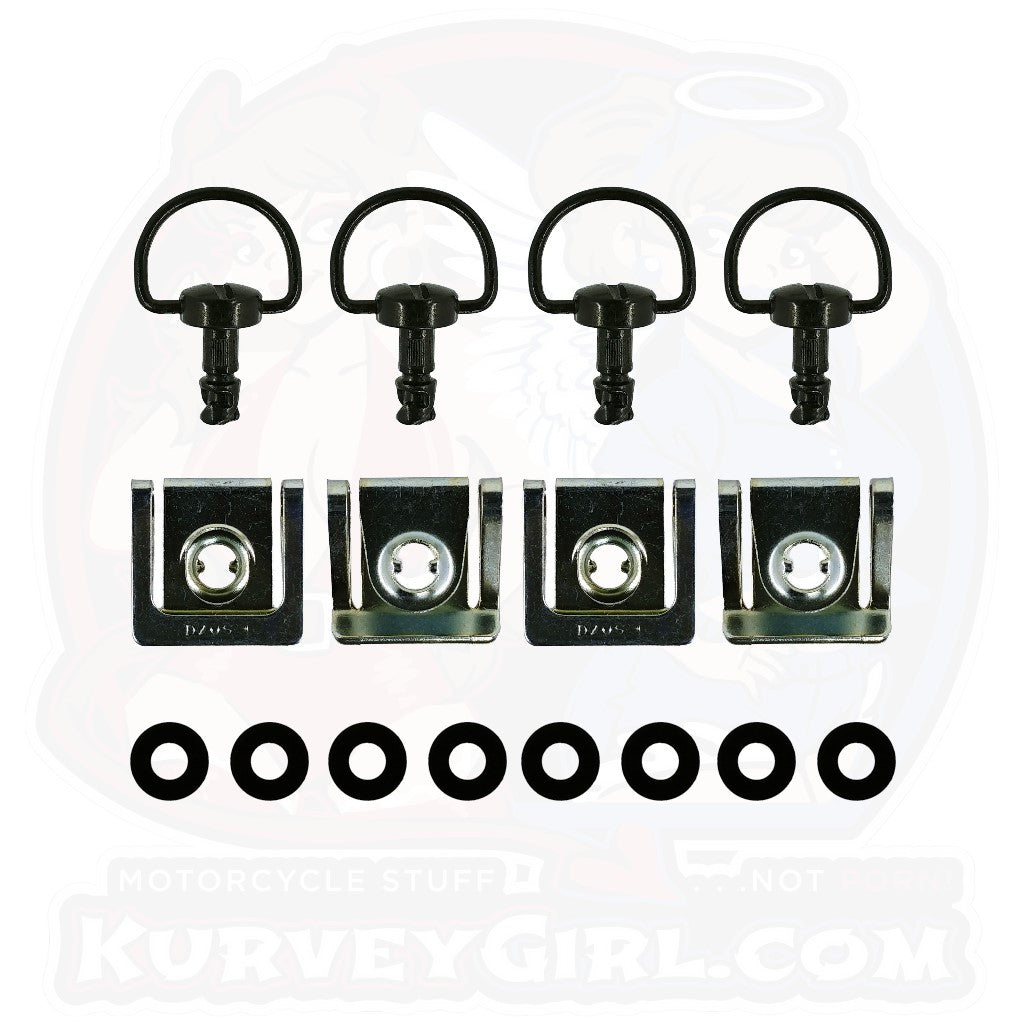

Kit Includes:
4 - 6mm D-Ring Panex D8 Fasteners Length: 12mm
Coating: Zinc Plate with BLACK Chromate
4 - 6mm Clip on Panex D8 Retainers Coating: Zinc Plate with Chromate
10 - Retaining Washers. Material: High density polyethylene
2 extra washers for your tool box
NEW D8 Style Dzus® Panex Bolts:
  • New Generation Dzus® Panex Bolt that is lighter than original D3 Style Dzus® Panex Bolt
  • 100% Compatible with old D3 Mounting Hardware.
  • Thinner main bolt shaft with 6mm Engagement head.
  • New smaller Black retaining washers.
Dzus Panex D8 - 4 Pack - Clip On - Black - 12mm Working Length Dzus Panex D8 - Single Bolt Kit - Black - Clip On - 12mm Working Length





Special Fitment Notes:
Armour Bodies Bodywork (Sold by Woodcraft CFM in USA) :





Combine 4pcs, 6pcs and 10pcs kits to create custom kit sizes...
4pcs kits 6pcs kits 10pcs kits Total Number of Dzus®
1 - 4 pcs kit 0 - 6 pcs kit 1 - 10 pcs kit 14 Dzus® Pcs
3 - 4 pcs kit 1 - 6 pcs kit 0 - 10 pcs kit 18 Dzus® Pcs
2 - 4 pcs kit 1 - 6 pcs kit 1 - 10 pcs kit 24 Dzus® Pcs





Dzus® Bolts Specs & Drawing
Dzus Panex D8 Bolt Specs - Drawing
Additional Dzus® Bolt Specs / Info

  • (L) Working Length: 12mm
  • Shaft Length : 15mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers
  • Minimum bodywork Hole size: 6.2mm
    • English: 1/4 Inch





Dzus® Clip Specs & Drawing
Dzus Panex D8 Clip Specs - Drawing
Dzus® Clip Specs / Info

  • Max hole from edge: 12mm
  • Minimum flat space for clip: 25mm
  • Minimum clearance behind bodywork:12mm
  • Grip Range: 3.5mm to 5.4mm
    • Maximum Grip with out washers
    • Minimum Grip using 2 washers





Dzus® is a Registered Trademark of Southco Inc.
